Machining

Thanks to our wide range of integrated equipment at our Chappes site and our experienced team members, we can produce for you mechanical productions or machined parts corresponding to your needs in perfect quality conditions from procurement to final delivery.

OUR KNOW-HOW:

• Machining, assembly, testing of mechanical assemblies up to 10 tons
• Machining of small and medium series parts
• Execution according to “quality plan” (nuclear)
• Repair and mechanical maintenance of industrial processes
• Stellite type hardfacing…

.

OUR MAIN EQUIPMENT :

CAD/CAM
– TOPSOLID

FLAZING
Numerical Control
• 4 axes

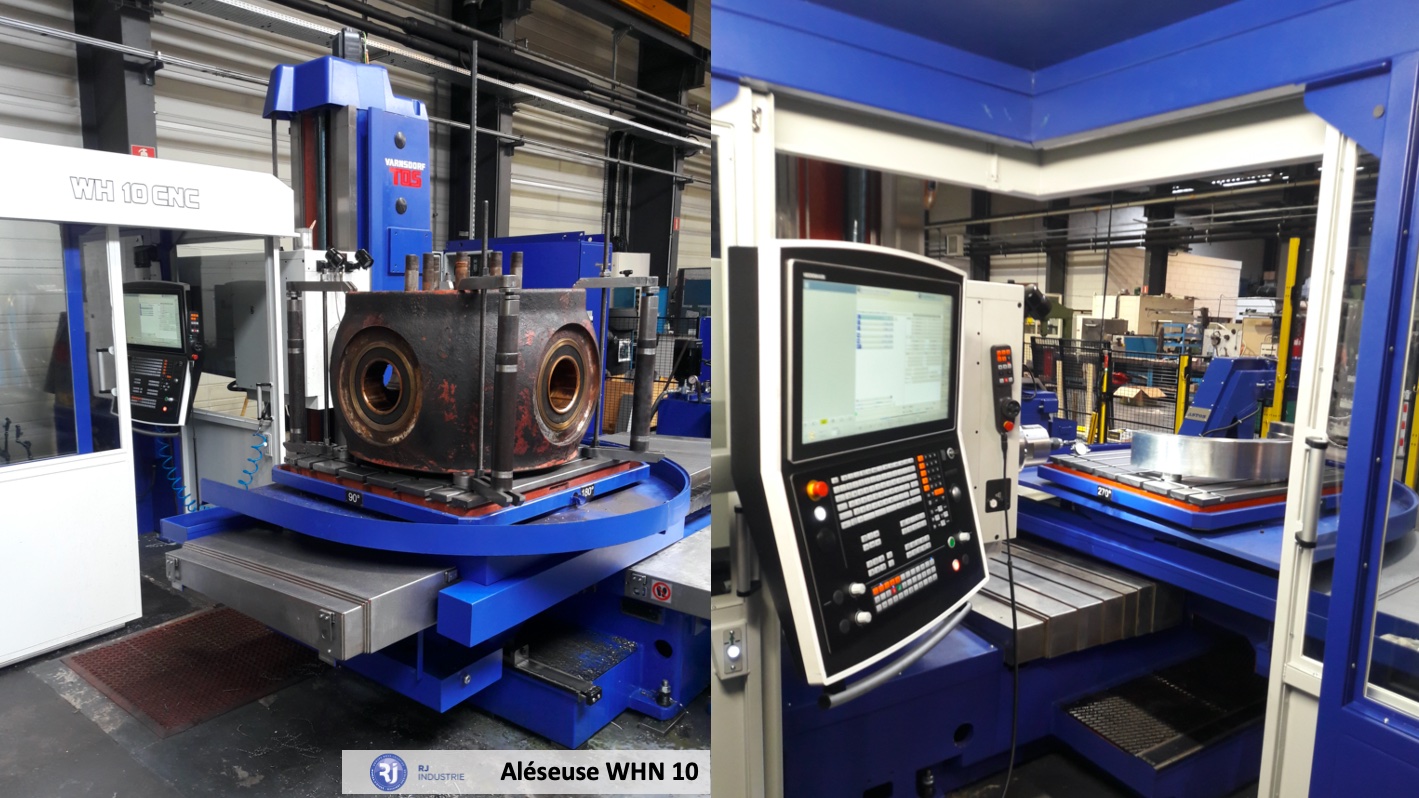

– TOS CN WH 10 (CN HEIDENHAIN) – 1000 x 1000 X 1000 X 600 – Table 1000 X 1120 load 3 t

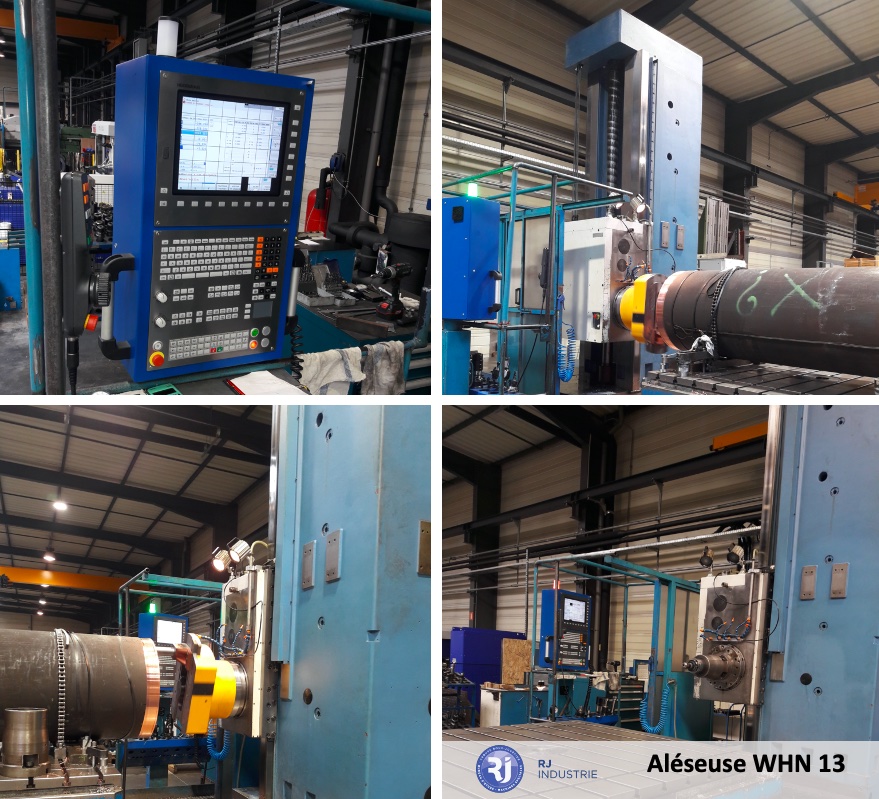

– TOS CN WHQ 13 (CN HEIDENHAIN) – 3500 x 2000 X 1250 X 800 – Table 1800 X 1600 load 12 t

RADIAL DRILLING
– BREDA radial – 1500 arm, CM5 spindle, circular table Ø 1000 with digital positioner
– Radial drilling machine MAS + table – 1500 mm

LATHE
Parallel numerical control
• 2 axes
– HAAS SL 20 (HAAS NC) – Ø160 – EP 250
– MAZAK QTS 250 (MAZATROL NC) – Ø 350 – EP 1000
– MAZAK QT 40 (MAZATROL NC) – Ø 400 – EP 1500
– MAZAK QTS 350 (MAZATROL NC) – Ø 420 – EP 1200
– ERNAULT TOYODA (FANUC NC) – Ø 500 – EP 1200
– SOMAB 1250 (FANUC NC) – Ø 1250 – EP 3000
– CAZENEUVE HC 800 (FANUC NC) – Ø 650 – EP 3000

• 5 axes
– INTEGREX 300-IV (MAZATROL NC) – Ø 700 – EP 1500

Vertical NC
• 2 axes

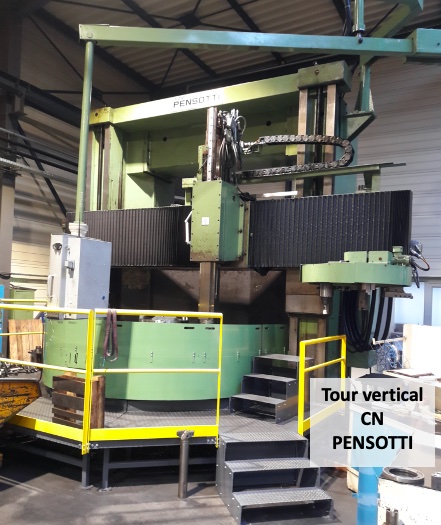

– PENSOTTI (SIEMENS NC) – Ø 3000 – EP 2500

Conventional
• 2 axes
– HXB – Ø 200 – EP 700
– CAZENEUVE – Ø 725 – EP 3000
– GEMINI – Ø 900 – EP 4000

MILLING
CN
• 3 axes
– PMER – (CN ANILAB) – 610 X 410 X 460
– ROSILIO – (CN HEIDENHAIN) – 600 x 400 x 380
– FADAL – (CN FANUC) – 1016 x 508 x 600
– OKK1 – (CN FANUC) – 1020 x 557 x 670
– KIHEUNG – (CN HEIDENHAIN) – 1900 x 800 x 850

• 4 axes
– HAAS VF3 (CN HAAS) – 1010 X 505 X 600 X 300
– HURON GAMBIN (CN NUM) – 2000 X 700 X 800 X 600
– MORI SEIKI SV500 (CN FANUC) – 850 X 500 X 400 X Ø table 125
– HAAS VF5 (CN HAAS) – 1250 x 600 x 605 X Ø table 400

Conventional
• 3 axes
– CORREA – 2180 X 800 X 650
NC Series spare parts
• 4 axes palletized
– MAKINO 1 (CN FANUC) – 560 X 560 X 560
– MAKINO 2 (CN FANUC) – 560 X 560 X 560
– AVEREX 450i (CN FANUC) – 640 X 608 X 780
• 5 axes palletized
– VILLEMIN (CN FANUC) – 800 X 500 X 400 X Ø mandrel/plate 400

EROSION SINKING
Numerical Control
• 4 axes
– CHARMILLE 1 (CN PROFORM) – 450 X 300 X 350 + Spindle rotation
– CHARMILLE 2 (CN PROFORM) – 450 X 300 X 350 + Spindle rotation
– ONA (CN FANUC) – 800 X 600 X 550 + Spindle rotation

GRINDING
Cylindrical
– STUDER (CN FANUC) – 300 X 1000
Flat
– PROTH – 1000 X 500 X 450
– FLAT GRINDING MACHINE– 1100 X 550 X 300

MORTISING
– MORTIZER FROMAG – course 430

ASSEMBLY
– Expertise / Repair / New parts

CONTROL
– Measuring arm 3D ROMER Power Inspect – capa. 2500 mm
– Measuring arm FARO – capa. 1500 mm
– Measuring column TRIMOS 0-1000 mm
– Motorized tridimensional measuring machine JOHANSSON 1000 X 1000 X 600.

MECHANICS AND MACHINING AT RJ MEANS:

• 30 employees
• 3600 M2 of workshop – Lifting capacity up to 10 t
• ISO 9001-2015 AFAQ certification – EDF-UTO approval – Customer approval (Michelin, Aubert & Duval, Alstom …)
• Sectors of activity: Energy (Nuclear and Hydroelectric), Pneumatic industry, Metallurgical industry, Pharmaceutical industry…
• Single parts – Small series – Medium series (500 parts)
• Small, medium and large dimensions
• Machined materials: Steel, Stainless steel, Aluminium, Bronze, Titanium…
• Material supply: all types, forges and foundry

.

OUR COORDINATES FOR YOUR MACHINING PROJECTS:

20 Route de Clermont
63720 CHAPPES (FRANCE)
Tel : +33 (0)4 73 28 72 30

————
